Magnetic Separation

Micromag

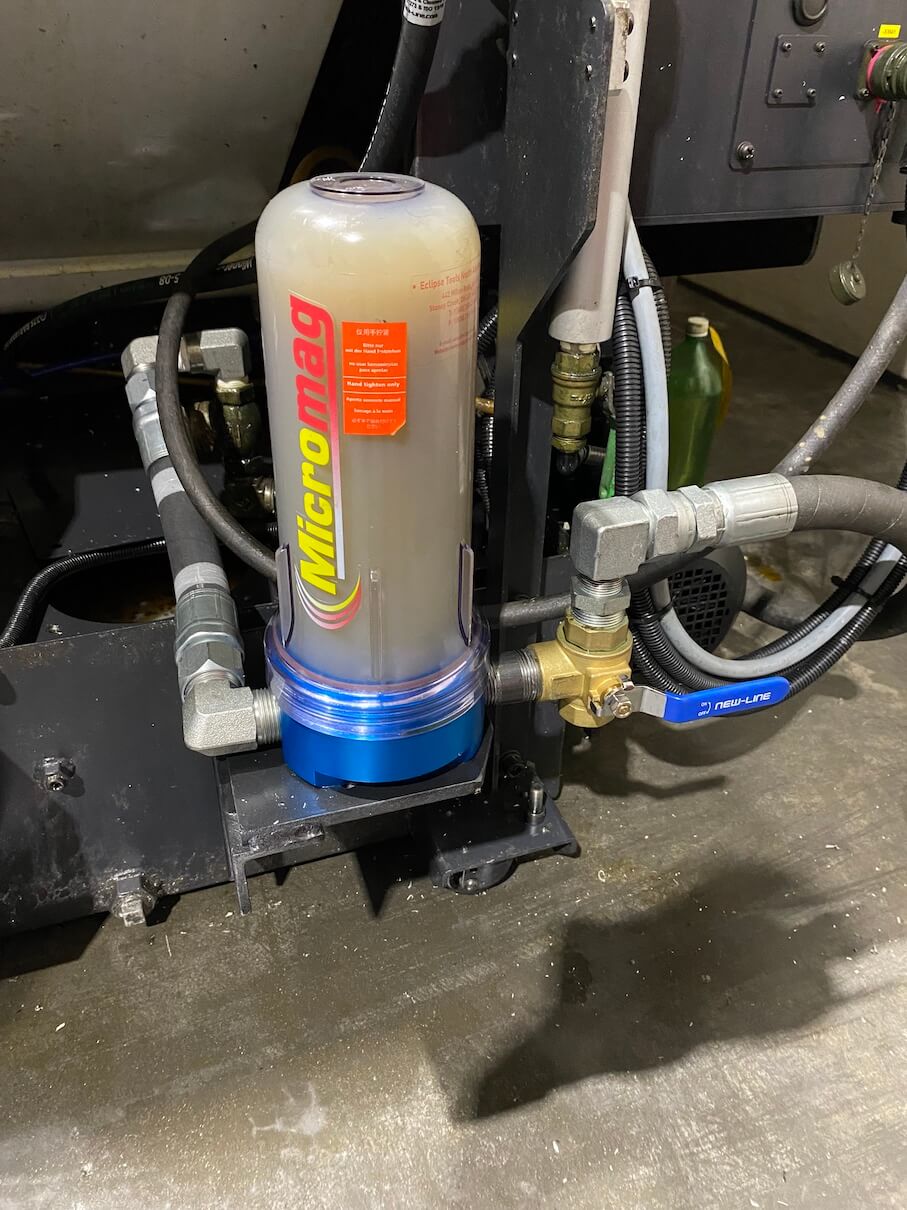

The Eclipse Magnetics Micromag is the ideal solution for the hands-free removal of ferrous fines and chips.

Three sizes available; efficient, durable and economical – perfect for single cell machines or small wash stations.  Simple to use and easy to clean, it can be added to almost any application: new or retrofit.

With its manual clean filter, the Micromag can be cleaned in less than 30 seconds with the included cleaning tool.

Notable Features include:

  • High Intensity, rare-earth, N45 Magnetic Core
  • Large Collection Capacity
  • Almost 100% removal of ferrous contaminant
  • Compact Design
  • No loss of flow or pressure
  • Coolant savings = rapid returns on investment
  • Saves on Downtime and Maintenance
  • Easy to clean (cleaning tool included)
The Micromag is also available in aluminum and stainless for more abrasive applications.

Model numbers:  Plastic – MM5/ 1.0, MM10/ 1.0, MM20/ 1.5, Aluminum MM5/ HP/ 50NPT, MM10/HP/50NPT, MM20/HP/50NPT Stainless – MM5/ HP/ 80NPT, MM10/ HP/80NPT, MM20/ HP/80NPT

Parts:

MM5/VS 5” Viton Sealing Ring (Viton A)
MM5/MB 5” Lid Mounting Bracket
MM5/BS 5” Bowl Spanner
MM5/B 5” BowlMM10/VS 10” Viton Sealing Ring (Viton
MM10/MB 10” Lid Mounting Bracket
MM10/BS 10” Bowl Spanner
MM10/B 10” Bowl
MM20/VS 20” Viton Sealing Ring (Viton
MM20/MB 20” Lid Mounting Bracket
MM20/BS 20” Bowl Spanner
MM20/B 20” Bowl
